When DVB-ASI and DVB-SPI conversion is required.

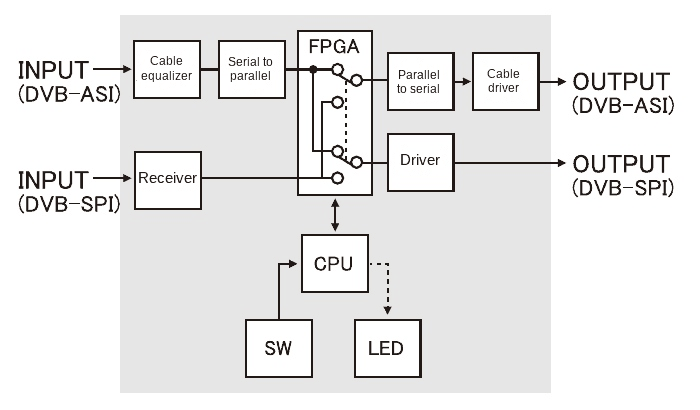

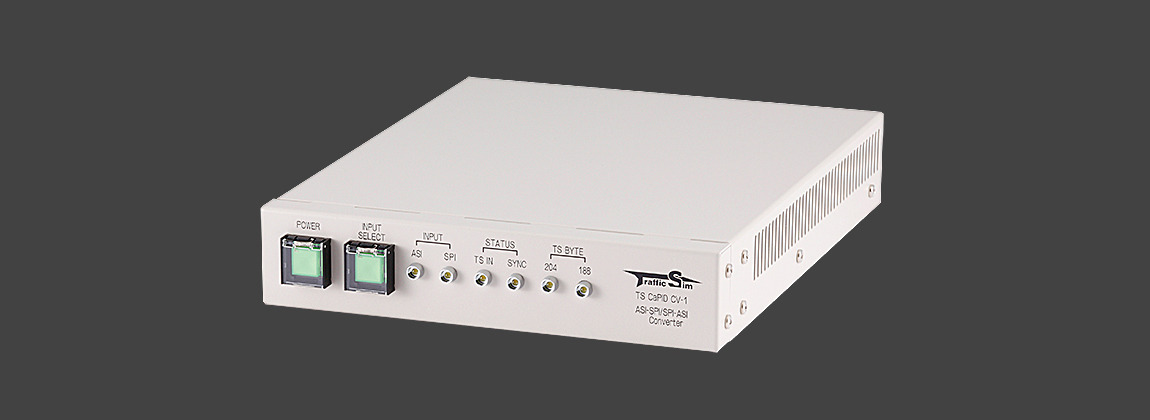

The CV-1 is a unit that converts DVB-standard SPI signals to ASI signals.
Of course, it can also convert ASI signals to SPI signals, and the conversion direction can be switched with a single front-panel switch.
It also includes a through output, allowing you to obtain the converted signal while keeping the original signal flow intact.
In addition, the ASI input section is equipped with an equalizer function, which corrects waveform distortion that occurs during transmission before conversion.
※DVB (Digital Video Broadcasting) is an internationally approved standard for digital television broadcasting.
※Mounting brackets U-1 and U-2 are sold separately.
Specifications
| Product Type | DVB-ASI ⇔ DVB-SPI Converter | |
|---|---|---|
| Product Name | TS CaPID CV-1 | |
| Model Number | CV1-AS111HR | |
| Input / Output | Input: DVB-ASI ×1 or DVB-SPI ×1 | |
| Bitrate | DVB-ASI → DVB-SPI | |
| Power | AC100V | |
| Power Consumption | 6W | |
| Apparent Power | 12VA | |
| Operating Temperature / Humidity | 5 to 40°C, 30 to 80% RH (non-condensing) | |
| Dimensions (W × H × D) | EIA 19-inch rack, 1U half size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.2 kg | |
| Accessories | Dedicated AC100V power cable User manual | |
| Limitations | Input/output cable length: DVB-ASI 200 m (5CFB) | |
| Options | Rack mount support angle U-1 (mount one unit in 1U) Rack mount support angle U-2 (mount two linked units in 1U) | |
| Related Products | 64QAM / 256QAM Demodulator (DMB-2-QAM) ISDB-T Demodulator (DMB-2-ISDBT) ISDB-S Demodulator (DMB-2-ISDBS), etc. | |
