For demodulating BS / 110°CS (ISDB-S)
For use in the front stage of monitoring / simultaneous recording
For simple IF monitoring

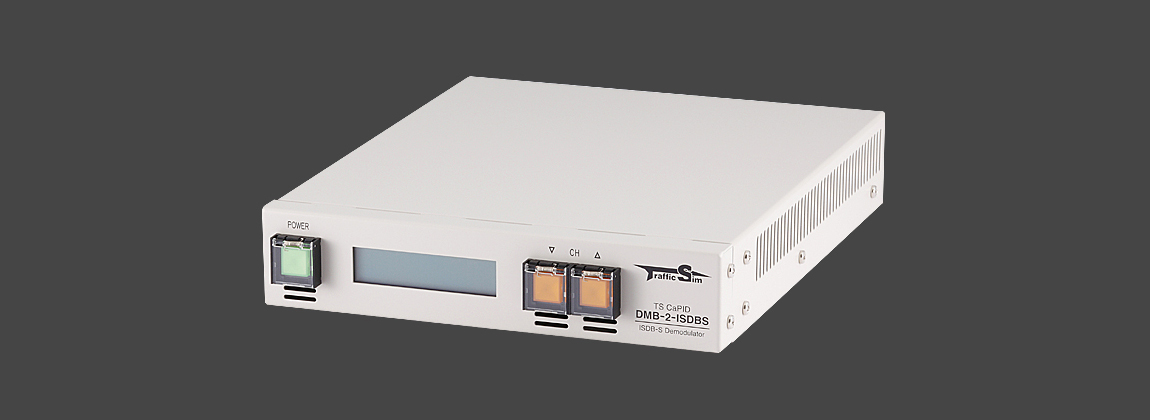

DMB-2-ISDBS is a demodulator that receives BS digital / 110°CS digital broadcasts, demodulates them, and outputs TS signals.
Main Specifications / Functions
- Output mode switching (ASI only): Packet mode / Burst mode
- Output TS formats: 188 / 204 / 192 / 208 bytes (192 / 208-byte formats supported via ASI only)
- When multiple TSIDs exist within a transponder, only the selected TSID can be output.
- When receiving the first service within a transponder, TMCC information can be obtained via the network.
Operation / Information Retrieval

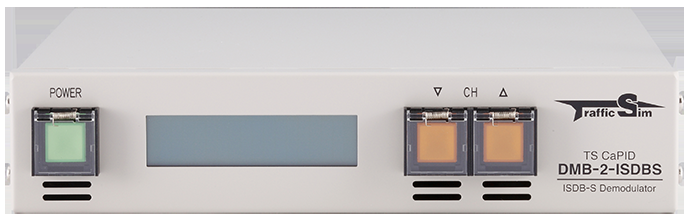

Control functions such as transponder / TSID switching and retrieval of various information can be performed via LAN or from the front panel buttons / front LCD.
Available information: BER (switchable: before / after RS decoding), C/N, Reception level, NET-ID
- Information can also be displayed via LAN using the included application.
- Upon request, the communication protocol can be disclosed to enable control and information retrieval via TCP communication.

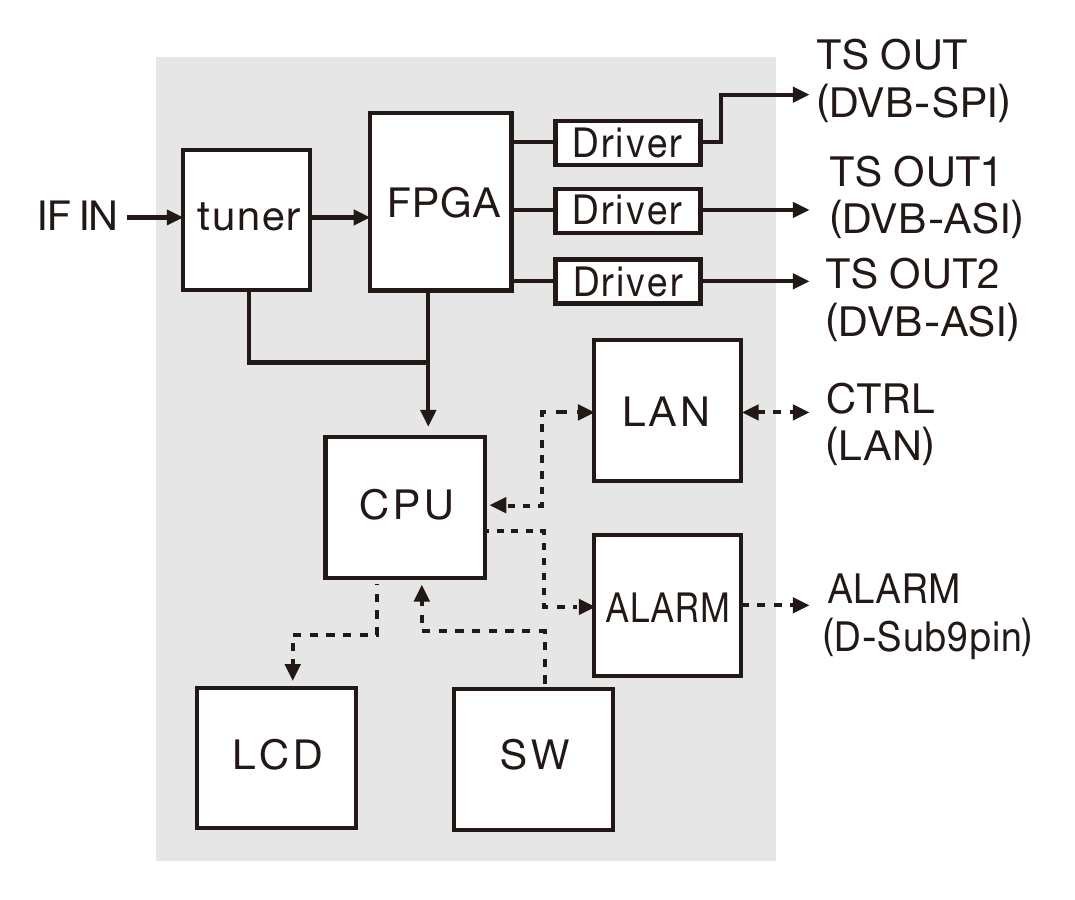

Output / External Interface
- Equipped with alarm contact output terminals
- TS output supports simultaneous output via DVB-ASI (2 systems) and DVB-SPI.
Specifications
| Product Type | ISDB-S Demodulator | |
|---|---|---|
| Product Name | TS CaPID DMB-2-ISDBS | |
| Model Number | DMB2-A2S1HR-ISDBS | |

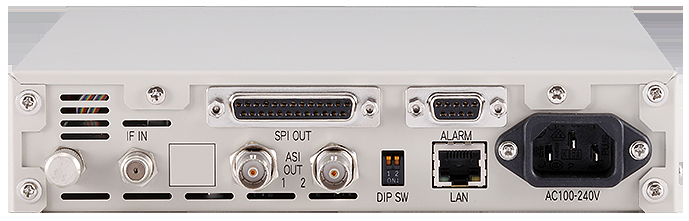

| Input / Output | IF Input | IF ×1 (75Ω, F-type connector) ※No antenna power output is provided. If required, please consult us separately. |
TS Output | DVB-ASI ×2 DVB-SPI ×1 | |
Contact Output | D-Sub 9-pin female ×1
※Photomos relay contact output | |
| Power | AC 100V–240V | |
| Apparent Power | 20VA | |
| Power Consumption | 12W | |
| Supported Frequency Range | 1032–1489 MHz: BS Digital, BS1–23ch 1575–2071 MHz: 110°CS Digital, ND2–24 | |
| Acceptable Reception Level | –67 to –28 dBm | |
| Supported Standard | ISDB-S | |
| Operating Temperature / Humidity | 5–40°C 30–80% RH (non-condensing) | |
| Return Loss | 950～2150 MHz：2.0 dB | |

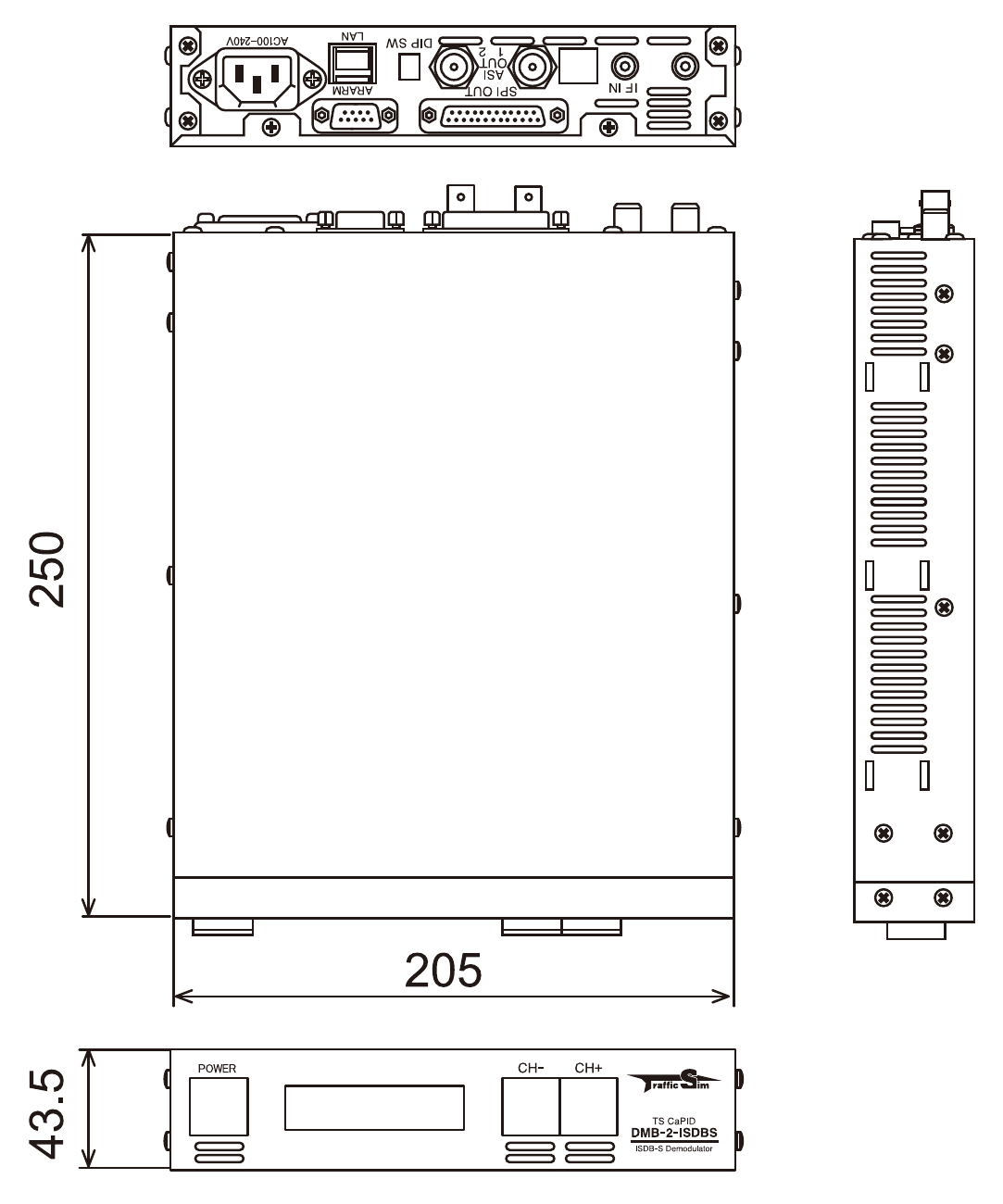

| Dimensions (W × H × D) | EIA 19-inch rack, 1U half size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.3 kg | |
| Accessories | AC100V power cable User manual Included application CD | |
| Options | Rack-mount support angle U-1 (mount one unit in 1U) Rack-mount support angle U-2 (mount two linked units in 1U) | |
| Related Products | TS to TSoIP Conversion Unit (WA-5-TI) | |
