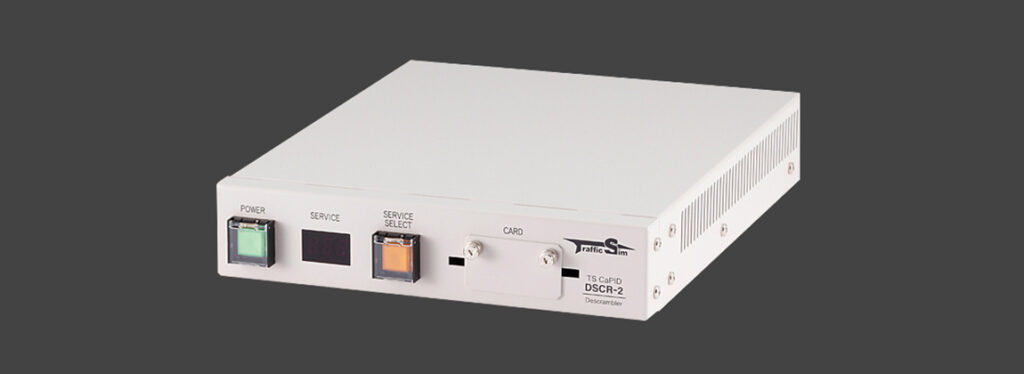

A descrambler compatible with both ARIB and JCTEA conditional access standards
Broadcast content is scrambled (encrypted) to protect copyright.
This unit supports the following two types of descrambling:
- B-CAS System
Supports the conditional access system “B-CAS” used in terrestrial digital broadcasts, BS broadcasts (excluding 4K / 8K and some services), and CS broadcasts (excluding 4K / 8K and some services). - C-CAS System
Supports the conditional access system “C-CAS” used in cable television.
The card required for descrambling must be provided by the customer.
- Only operator B-CAS cards or limited-purpose B-CAS cards are supported. Cards included with STBs or televisions cannot be used for descrambling.
- One-Seg broadcasts are not scrambled.
- A single unit can handle only one signal and one system at a time (either B-CAS or C-CAS).
- If multiple services (channels) within a single signal share the same key information, a single unit can descramble multiple services simultaneously. If different services use different key information, only one key will be used for descrambling. For example, if a signal contains Service 1 (Key A), Service 2 (Key B), and Service 3 (Key C), only the one selected service can be descrambled.
Our units are standard rack size, allowing them to be connected with other units from our lineup for rack mounting (using the dedicated bracket U-2).
Single-unit rack mounting is also supported (using the dedicated bracket U-1).
※ The dedicated brackets U-1 and U-2 are sold separately.
Specifications
| Product Type | ARIB / JCTEA Conditional Access System Compatible Descrambler | |
|---|---|---|
| Product Name | TS CaPID DSCR-2 | |
| Model Number | DSCR2-A120HR | |

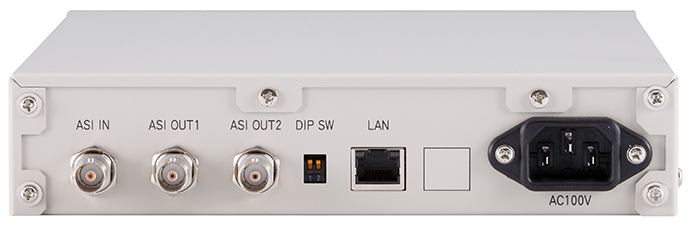

| I/O | Input | DVB-ASI × 1 (Packet mode / Burst mode compatible) |
| Output | DVB-ASI × 2 (Packet mode only) Card slot × 1 Control: LAN × 1 | |
| Power Supply | AC 100 V | |
| Apparent Power | 8 VA | |
| Power Consumption | 5 W | |
| Operating Temperature & Humidity | 5–45°C, 30–80% (no condensation) | |

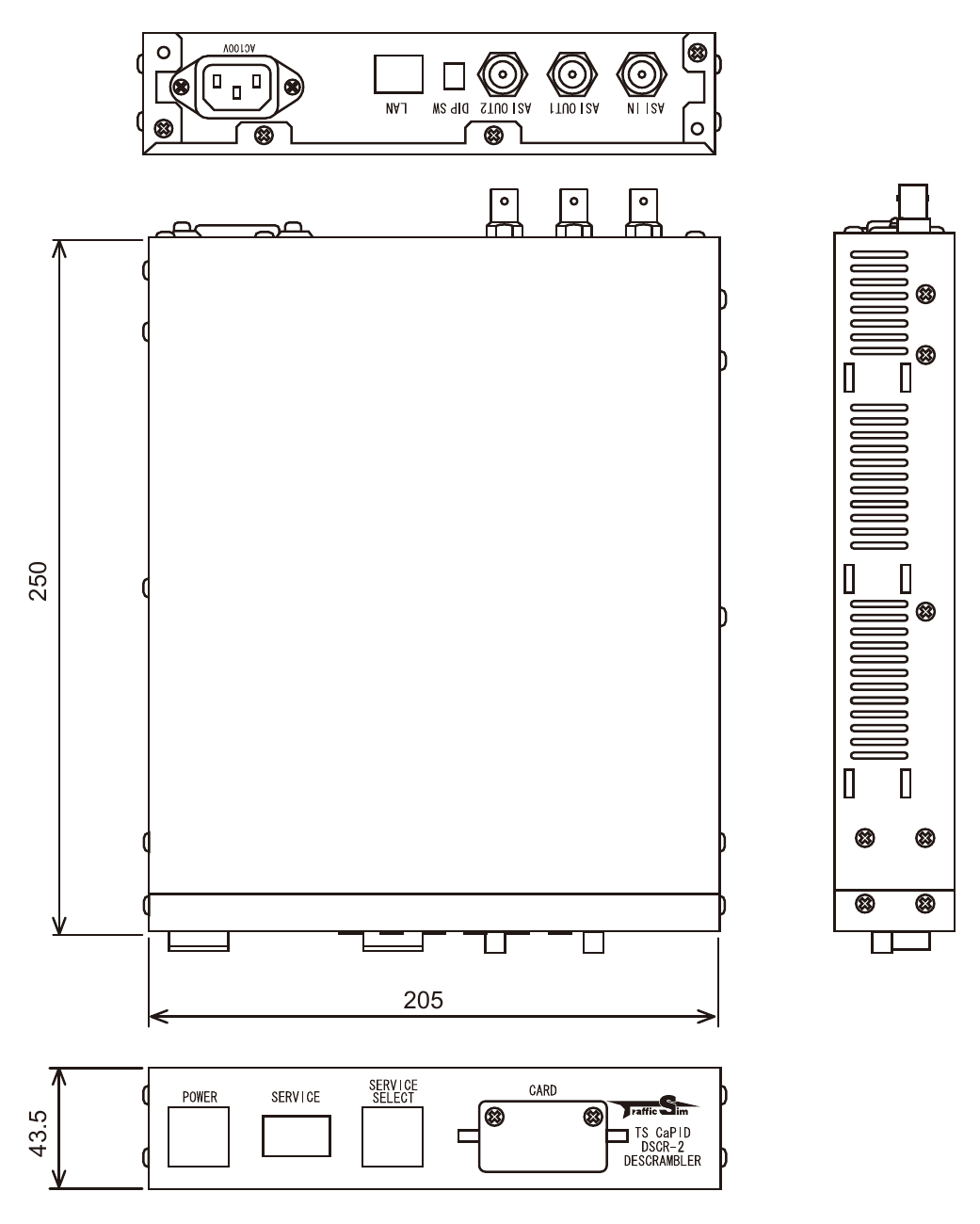

| Dimensions (W × H × D) | EIA 19-inch rack 1U half-size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.3 kg | |
| Accessories | Power cable (AC 100 V) Instruction manual Control application installation CD | |
| Compatible B-CAS Cards | Only the following three types of B-CAS cards are compatible. · Yellow: Limited-purpose · Black: Commercial use · White / Black: Specific commercial use ※ CAS cards are not included. | |
| Optional Accessories (Sold Separately) | Rack mount support angle U-1 (for mounting 1 unit as 1U) Rack mount support angle U-2 (for mounting 2 units in tandem as 1U) | |
| Related Products | DVB-ASI ⇔ DVB-SPI Converter (CV-1) ISDB-T Demodulator (DMB-2-ISDBT) ISDB-S Demodulator (DMB-2-ISDBS) 64QAM / 256QAM Demodulator (DMB-2-QAM) | |
