Receives Advanced BS-IF and can output a single TLV over IP.
If multiple TSIDs exist within a transponder, a TSID can be selected for output.
The single TLV can be output with NULL packets removed.
Supports multicast output.
Web UI (Browser Operation)
The following settings and status checks can be performed from the browser-based Web UI:
- Configure the receiving transponder, TSID, etc.
- Check reception status
- Check the constellation
- Check TMCC information
- Set alarm thresholds
Alarm Monitoring and Notification
- Alarm monitoring for reception level / C/N / bit error rate
- SNMP trap notification
- Alarm contact output
- EWS (Emergency Warning System) detection
Supports ISDB-S (Conventional BS / 110°CS)
The unit can also demodulate ISDB-S and output TS signals.
- If multiple TSIDs exist within a transponder, a TSID can be selected for output.
- ASI output mode can be switched between packet mode and burst mode (when using ASI output).
- TS packet size can be switched between 188 bytes and 204 bytes.

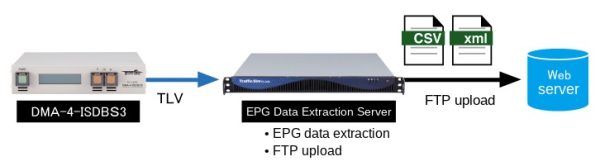

Example Use Case: EPG Extraction for Advanced BS
By connecting an EPG Data Extraction Server downstream, EPG data can be extracted from the received TLV data.
The extracted EPG data can then be utilized for applications such as display on web pages or other services.

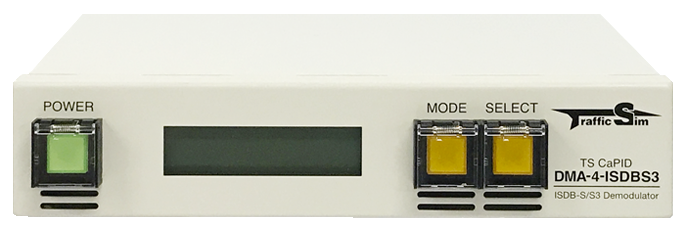

Specifications
| Product Type | ISDB-S3/S Demodulator | |
|---|---|---|
| Product Name | TS CaPID DMA-4-ISDBS3 | |
| Model Number | DMA4-A2L1HR-ISDBS3 | |

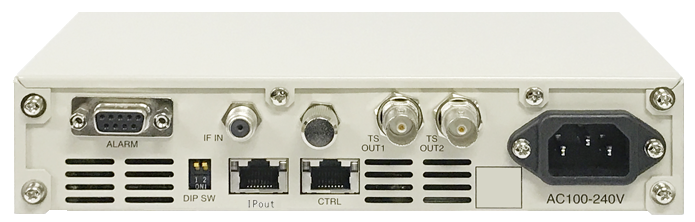

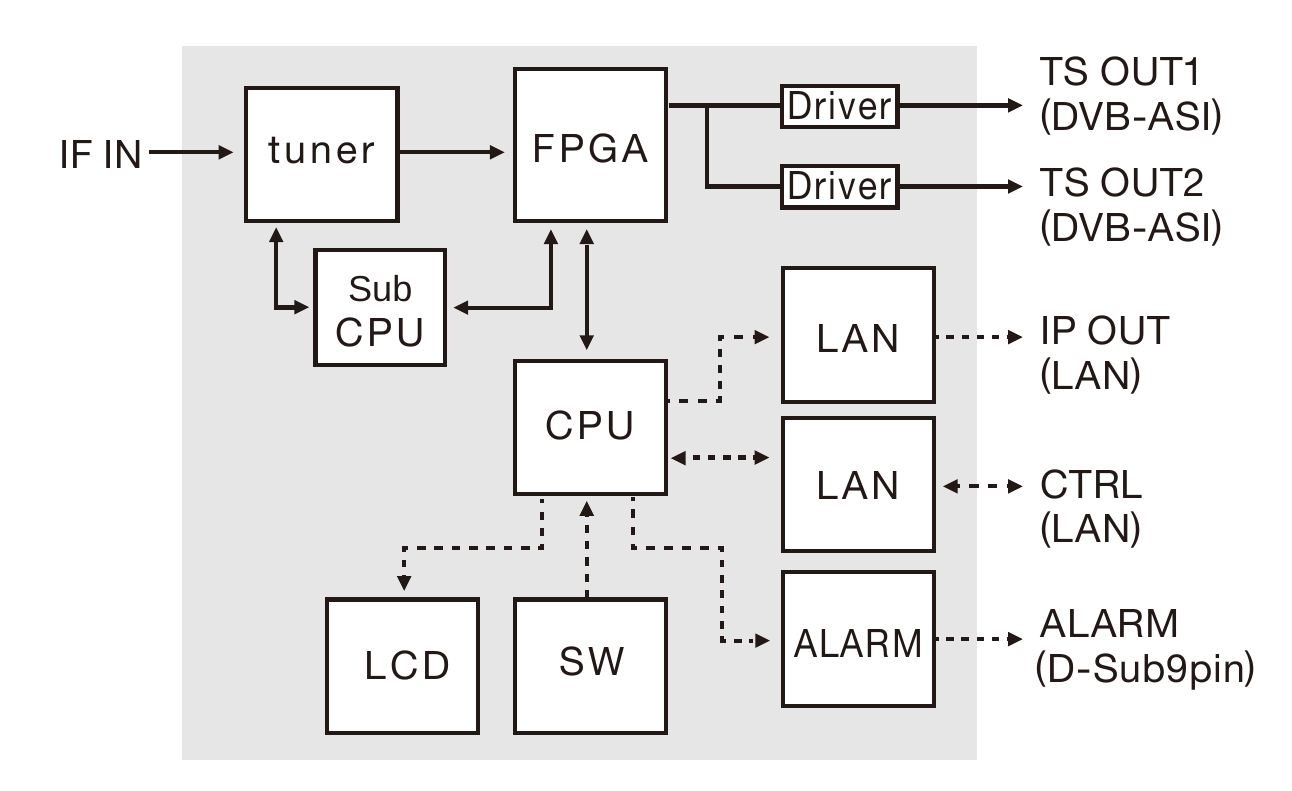

| Input / Output | IF Input | F-type connector (75Ω) ×1 |
| IP Output | RJ45 ×1 (TLV/IP, TSoIP) | |
| TS Output | DVB-ASI ×2 | |
| Contact Output | D-sub 9-pin (female) ×1 (PhotoMOS relay contact output, 4 circuits) | |
| Control | RJ45 ×1 | |
| Power | Supply Voltage | AC100V–240V |
| Apparent Power | 24VA | |
| Power Consumption | 15W | |
| Supported Frequencies | Right-hand polarization | BS1–BS23 (1049.48 MHz – 1471.44 MHz) ND2–ND26 (1550.00 MHz – 2053.00 MHz) |
| Left-hand polarization | BS2–BS24 (2241.66 MHz – 2663.62 MHz) ND1–ND25 (2726.00 MHz – 3206.00 MHz) | |
| Acceptable Input Level | ISDB-S3: 47.0–81.0 dBμV ISDB-S: 25.0–94.0 dBμV | |
| Supported Standard | ISDB-S3, ISDB-S | |
| Operating Temperature / Humidity | 0–40°C 30–80% RH (non-condensing) | |

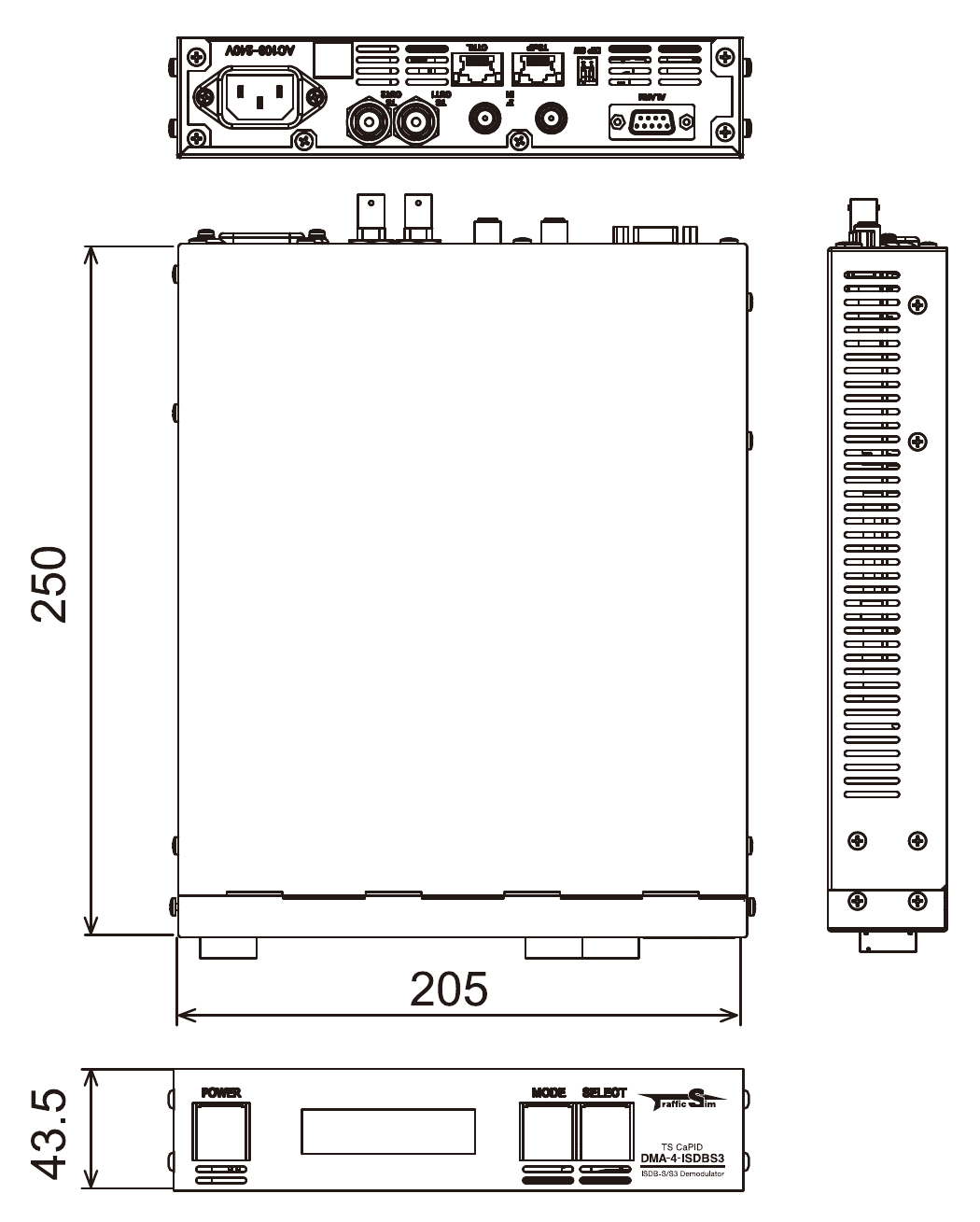

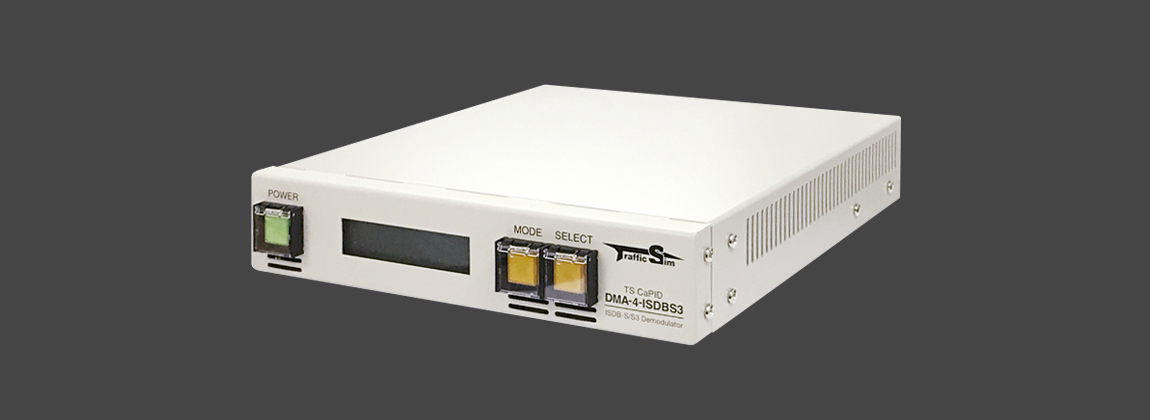

| Dimensions (W × H × D) | EIA 19-inch rack, 1U half size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.5 kg | |
| Accessories | Dedicated power cable (for AC100V) ×1 (*1) Instruction manual | |
| Options | Rack-mount support angle U-1 (mount one unit in 1U) Rack-mount support angle U-2 (mount two linked units in 1U) Power cable retainer N-1 | |
| Related Products | TLV Recording Server | |
(*1) The supplied dedicated power cable complies with the Electrical Appliance and Material Safety Act. Always use the supplied cable.
