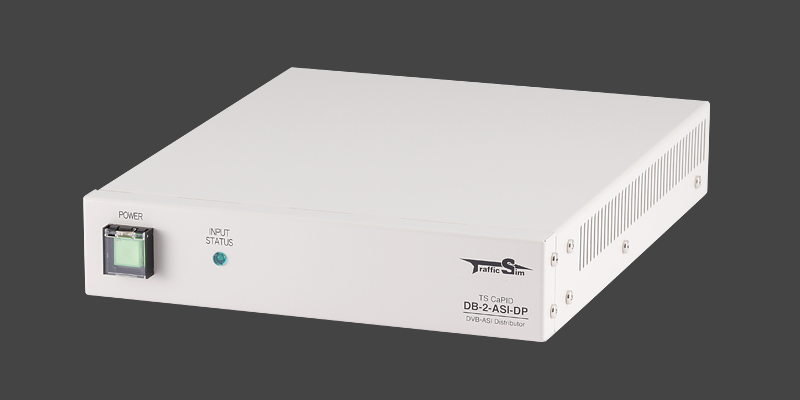

A 1-to-4 distributor compatible with DVB-ASI / HD-SDI / SD-SDI signals
This is a 1-to-4 distributor compatible with DVB-ASI, HD-SDI, and SD-SDI signals. The input signal can be split and output to four channels.
- Supports operation with DC power input
- Enables redundant power operation using AC + DC power

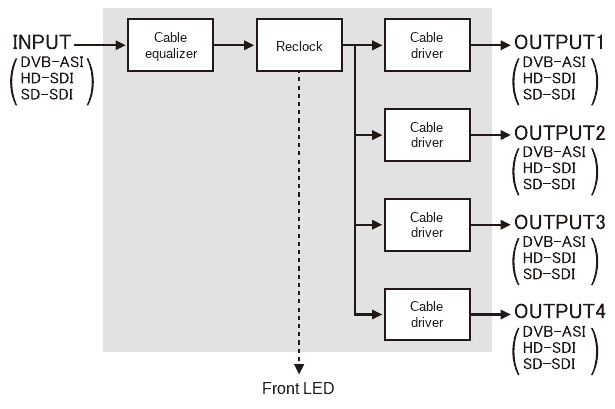

- Reclocking function reshapes and stabilizes degraded input signals before output
- Built-in equalizer on the input stage compensates for cable loss
- Can be mounted in a rack by connecting with our same-sized products using optional dedicated brackets
※Optional brackets (U-1, U-2) are sold separately.
Specifications
| Product Category | DVB-ASI / HD-SDI / SD-SDI 1-to-4 Distributor (AC/DC Dual Power Model) | |
|---|---|---|
| Product Name | TS CaPID DB-2-ASI-DP | |
| Model Numbe | DMB2-A140HR-DP | |
| Input / Output | Input : DVB-ASI ×1 (supports packet mode / burst mode) HD-SDI / SD-SDI ×1 (BNC, 75Ω) Output : DVB-ASI ×4 (supports packet mode / burst mode) HD-SDI / SD-SDI ×4 (BNC, 75Ω) | |
| Supported Formats | Compliant with DVB-EN50083-9 Compliant with SMPTE 292 Compliant with SMPTE 259 | |
| Input Return Loss | 15 dB or higher | |
| Input/Output Delay | 40 ns or less | |
| Power Supply | AC 100–240 V | |
| Power Consumption | 5 W / 10 VA | |
| Operating Temperature / Humidity | 5–40°C, 30–80% (non-condensing) | |
| Dimensions (W × H × D) | EIA 19-inch rack, 1U half-size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.1 kg | |
| Cable Equalization | DVB-ASI / SD-SDI: up to 200 m (using 5CFB cable) HD-SDI: up to 100 m (using 5CFB cable) | |
| *Accessories (2) | AC 100 V power cable User manual | |
| Options | Rack mount support angle U-1 (mount one unit in 1U) Rack mount support angle U-2 (mount two units side-by-side in 1U) | |
| Related Products | DVB-ASI ⇔ DVB-SPI Converter (CV-1) 64QAM / 256QAM Demodulator (DMB-2-QAM) ISDB-T Demodulator (DMB-2-ISDBT) ISDB-S Demodulator (DMB-2-ISDBS) | |
