Checks the contents of broadcast EPG data and outputs the EPG information in CSV or XML format.
With the included Viewer application, you can check not only EPG information but also the timestamp and details of any EPG changes. The acquired EPG data can be exported in CSV or XML format.

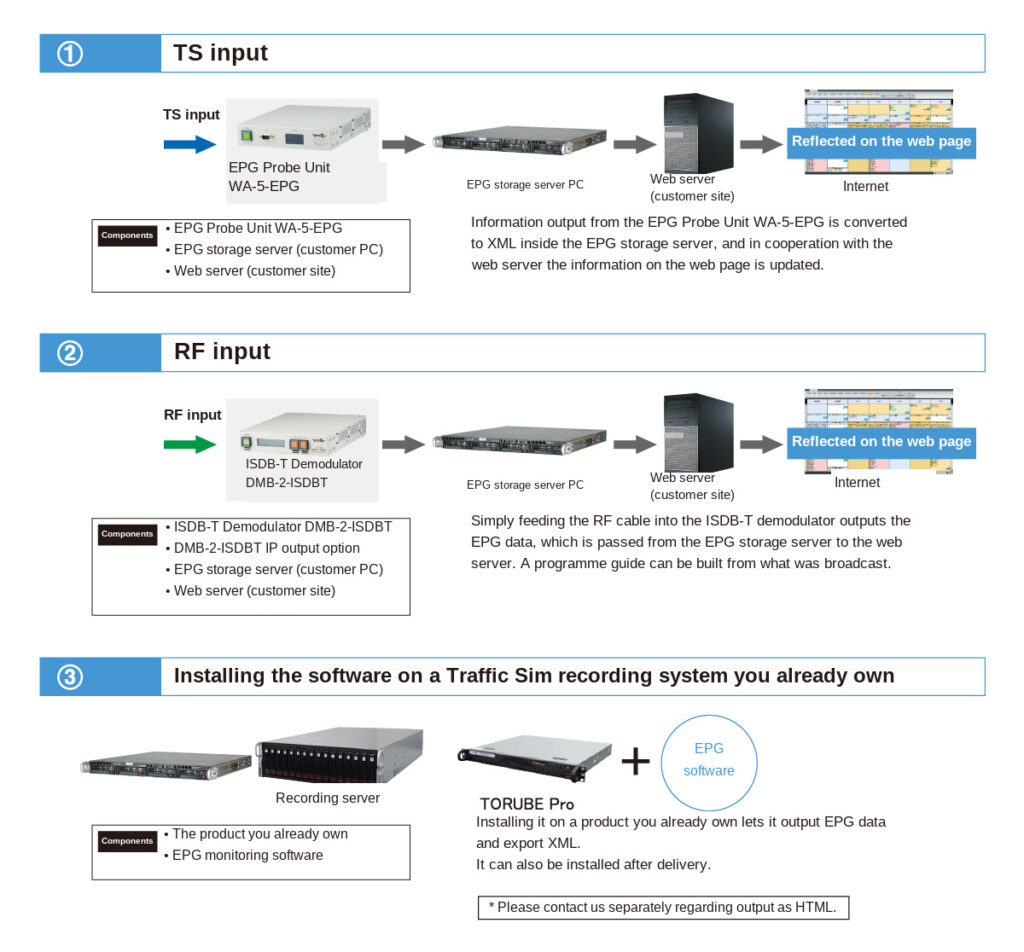

Main Use Cases
Designed for users who want to verify broadcast EPG data and utilize EPG information.
We offer a wide range of solutions, from EPG data export (CSV/XML) to simultaneous monitoring of video/audio and EPG.
Example
Viewer application display screen
Other EPG-related Features
With the Viewer application, you can also review when EPG changes occurred and what was changed, in addition to standard EPG information.
Specifications
| Product Type | MPEG-2 TS EPG Probe Unit | |
|---|---|---|
| Product Name | TS CaPID WA-5-EPG | |
| Model Number | WA5-A100S000HR | |
| Input / Output | TS Input | DVB-ASI ×1 |
| TSoIP Output | RJ45 (100Base-TX) ×1 | |
| Control LAN Port | RJ45 (100Base-T) ×1 | |
| Input Return Loss | ≥ 15 dB | |
| Power | AC 100V | |
| Apparent Power | 17VA | |
| Power Consumption | 9W | |
| Operating Environment | Temperature: 5–40°C Humidity: 30–80% RH (non-condensing) | |
| Dimensions (W × H × D) | EIA 19-inch rack, 1U half size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.2 kg | |
| Accessories | EPG monitoring software AC100V power cable User manual | |
| Options | Rack mount support angle U-1 (mount one unit in 1U) Rack mount support angle U-2 (mount two units in 1U) | |
