Reduce the time required for fault isolation with multiple TORUBE + Multi-Sync Viewers
Overview
The Multi-Sync Viewer (MSV) is an application that connects to our products, including the multi-point simultaneous recording unit RCD-200 “TORUBE Pro” and TS simultaneous recording servers, to enable batch playback of recorded video.
EPG information and SDI ancillary data recorded by the simultaneous recording devices can be displayed in sync with video and audio, allowing you to check not only the video and audio but also the associated metadata all at once.

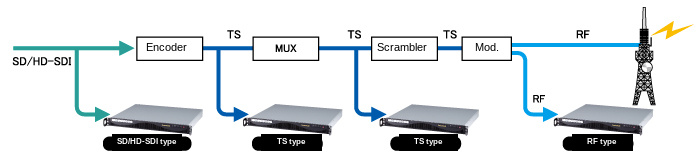

Furthermore, since simultaneous recording data from multiple points can be played back at the same time, it enables rapid identification of the source of faults and easy confirmation of the scope of impact caused by failures.
Features

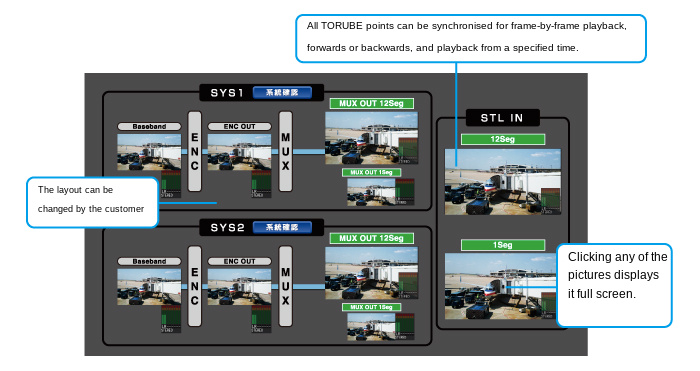

Supports various trick-play functions such as frame advance and frame reverse.
- You can also perform trick-play operations including frame advance, frame reverse, and playback by specified date and time.
- By clicking on a video, you can enlarge and display a single video independently.
With the display timing adjustment function, video can be displayed while compensating for system delays.
- Since the system includes a function to adjust the display timing for each video individually, it is possible to perform multi-view display while absorbing system delays.
Ancillary information contained in the SDI signal can be displayed in an easy-to-understand manner.
- The contents of inter-station control signals—such as video mode, audio mode, and Network Q signals—can be clearly displayed.
- It also supports the display of HD subtitles, SD subtitles, mobile subtitles, and clear packets, making it useful for confirming clear packets in commercial subtitles.

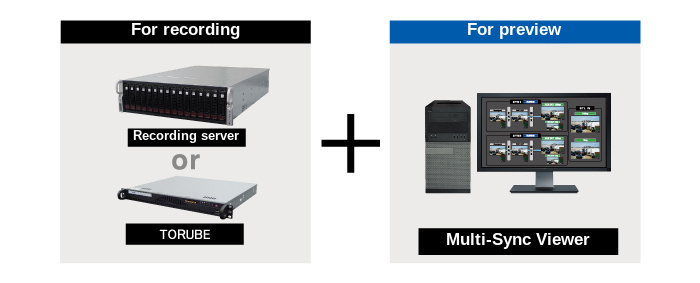

Configuration
The Stream Content View Pack can be implemented only with the following combination.
Note: A descrambling option is required when using scrambled TS input or RF input.
