The multi-channel, multi-location simultaneous recording unit “TORUBE” is a loop recording unit that supports a wide variety of input sources.
Since its launch in 2011, it has been used by many customers, including terrestrial broadcasters, CATV operators, and video distribution companies.
This product is intended for users who require short-term simultaneous recording rather than long-term legal recording, and for those who want to record signals from different input sources simultaneously and play them back in sync.
Supports a wide variety of input sources!
The following inputs are supported and can be selected at the time of installation.
Only one input per unit is supported.
If long-term recording is required, we can provide a server-type solution.

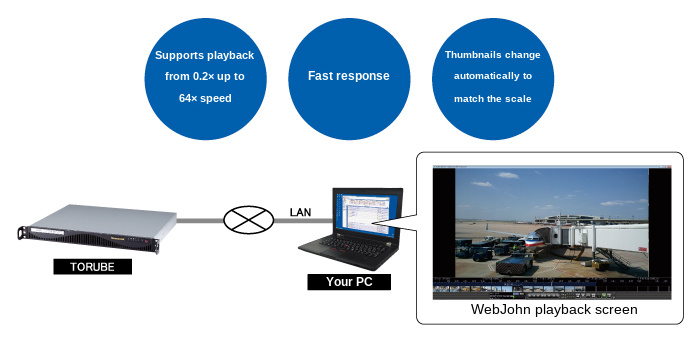

Works great as a standalone unit!
Simply connect TORUBE to your existing PC to check video and audio over the network, allowing it to operate effectively on its own. The software installs automatically, and unit configuration is easy.
Extensive Options
TORUBE can be equipped with various additional features to suit your specific needs.

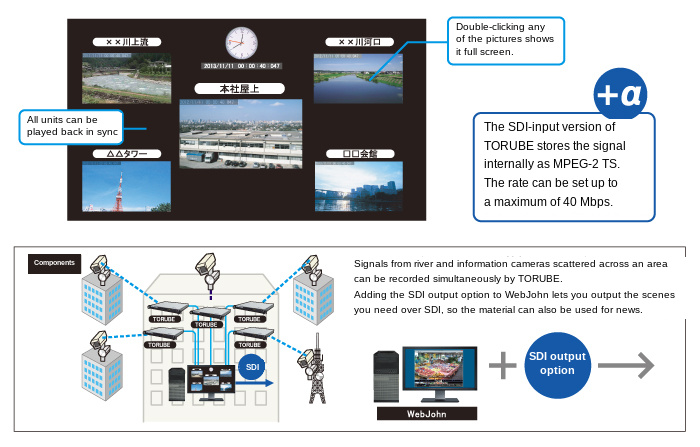

TORUBE Use Case | River Information Camera Recording/Output Package
Enables effective use of necessary information and data by displaying video from distributed weather cameras in a multiview layout and outputting via SDI.

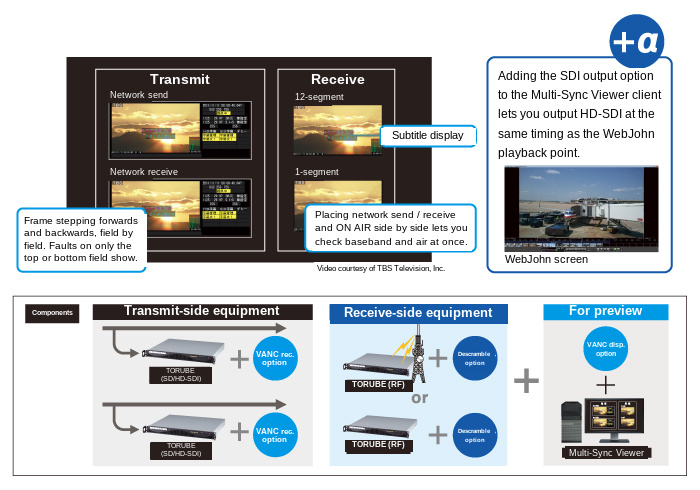

TORUBE Use Case | SDI Transmission Monitoring Package
Monitor everything from network feed (send/receive) to on-air on a single screen!
You can also record and simultaneously display ancillary data that may be of concern.
The Greatest Strength of TORUBE: System Integration
Although each TORUBE unit supports one input, it allows recording at various key points in the system.
With its compact 1U size, it can be installed in available rack space and simply connected via LAN.
By deploying multiple units, you can review critical points along the signal chain after the fact and extract the necessary segments as needed.
Integration (1)
By integrating with the Multi-Sync Viewer, verification is possible at the field and frame level.

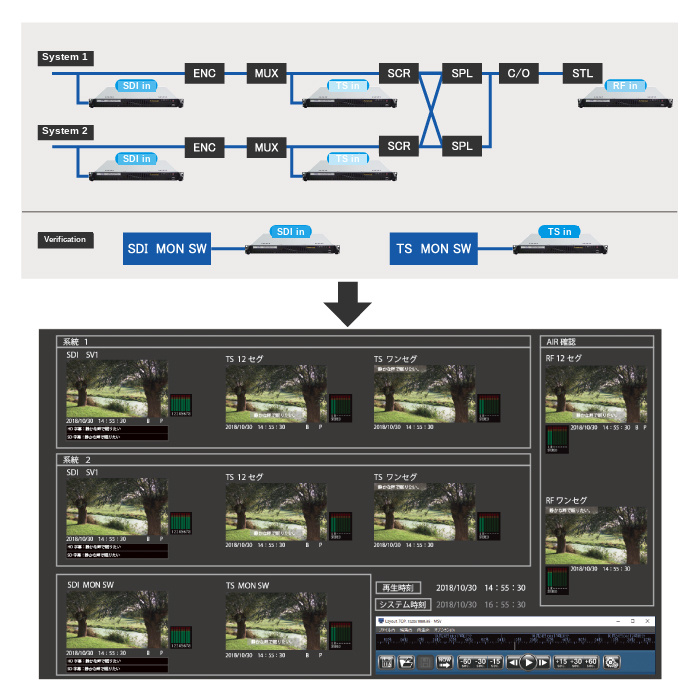

For example, when TORUBE units are deployed as shown below:
- Data recorded in multiple TORUBE units installed at different points can be displayed on a single screen.
- During playback, system delays can be absorbed to enable synchronized playback, with frame-by-frame and field-by-field stepping, including I/P/B frame-level control.
- SDI subtitles and on-air subtitles can be checked simultaneously.
- Supports audio monitoring with a single click, enlarged display with a double click, and data download.
Integration (2)

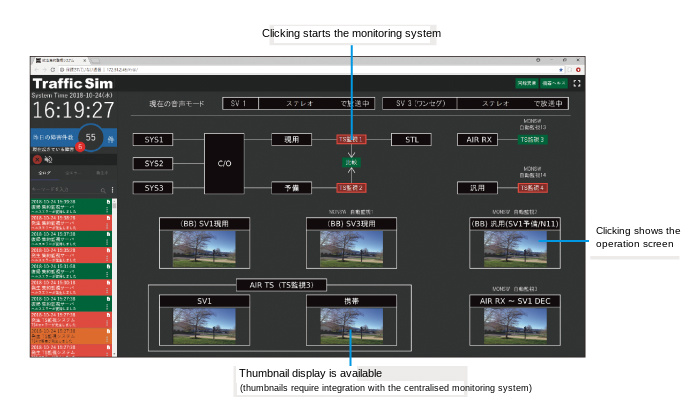

Expanding possibilities through integration with a centralized monitoring system.
The centralized monitoring system can receive contacts and SNMP from not only Traffic Sim products but also third-party products, and can change screen displays accordingly. The system supports Google Chrome, enabling remote access and monitoring from off-site locations.
And More...
Of course, it can also be used for purposes beyond monitoring.
By combining TORUBE’s thumbnail feature with the centralized monitoring system, you can check simultaneous recording points via the web.
The TORUBE thumbnail feature is available when delivered together with the centralized monitoring system.
For example, you can record camera footage and continuously monitor it through a web interface.
