When DVB-SPI ports are insufficient for testing or verification.
The DB-1-SPI is a unit that splits DVB-SPI signals.

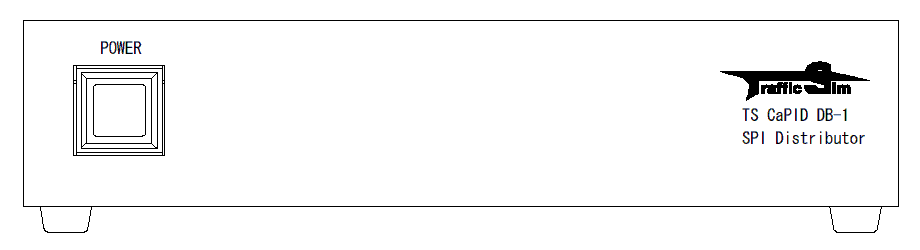

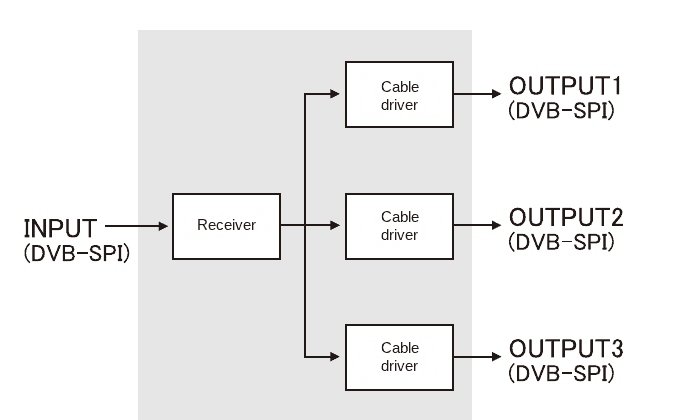

It can distribute one input DVB-SPI signal into three outputs.
Although SPI is less commonly used in recent broadcast environments, this unit is useful for testing and verification, where SPI signals need to be distributed to multiple devices.
This product follows our standard unit size, allowing rack mounting together with other units using the U-2 bracket, or standalone mounting using the U-1 bracket.
※ Mounting brackets U-1 and U-2 are sold separately.
※ DVB (Digital Video Broadcasting) is an internationally standardized specification for digital television broadcasting.
Specifications
| Product Type | DVB-SPI Splitter (1-to-3) | |
|---|---|---|
| Product Name | TS CaPID DB-1-SPI | |
| Model Number | DB1-S130HR | |

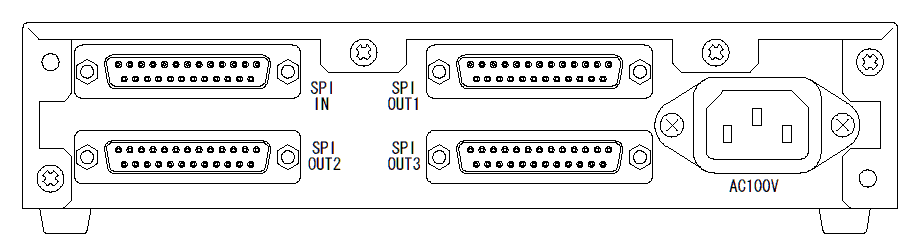

| Input / Output | Input: DVB-SPI ×1 Output: DVB-SPI ×3 | |
| Power | Supply Voltage | AC 100V |
| Apparent Power | 10VA | |
| Power Consumption | 5W | |
| Operating Environment | Temperature: 5–40°C Humidity: 30–80% RH (non-condensing) | |

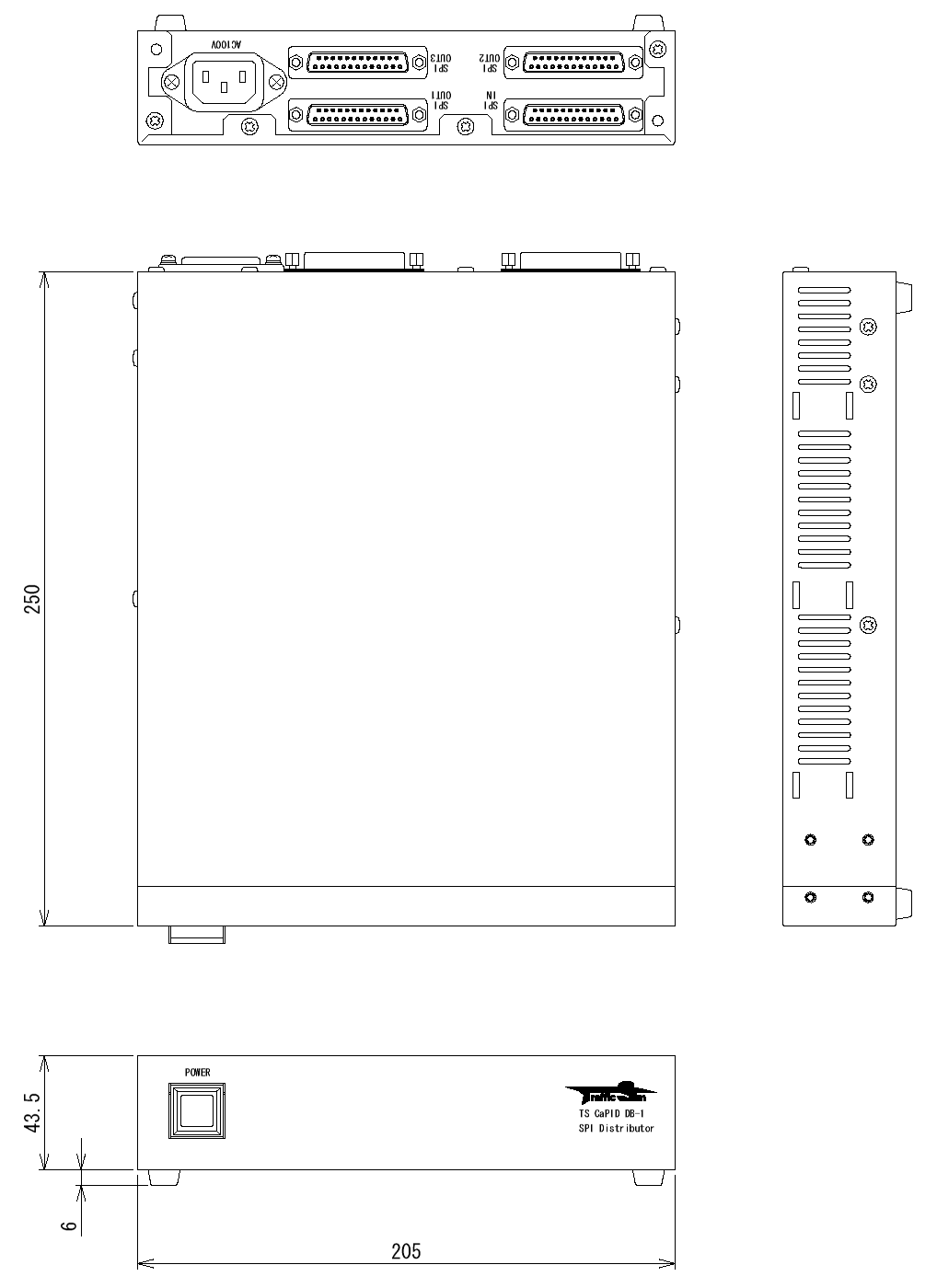

| Dimensions (W × H × D) | EIA 19-inch rack, 1U half size 205 × 43.5 × 250 mm (excluding protrusions) | |
| Weight | Approx. 1.1 kg | |
| Accessories | Dedicated power cable (for AC100V) ×1 (*1) Instruction manual ×1 | |
| Options | Rack mount support angle U-1 (mount one unit in 1U) Rack mount support angle U-2 (mount two units in 1U) Inspection test report (included only on request) | |
| Related Products | DVB-ASI ⇔ DVB-SPI Converter (CV-1) ISDB-S Demodulator (DMB-2-ISDBS) | |
(*1) The supplied dedicated power cable complies with the Electrical Appliance and Material Safety Act. Always use the supplied cable. The unit itself is outside the scope of the Act; however, we perform an in-house test equivalent to the dielectric withstand test for non-specified electrical appliances and ship only units that pass.
